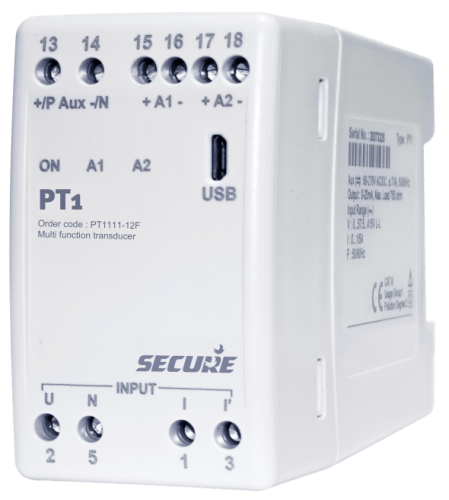

The Secure PT1 X12-152 is a high-precision single-phase DC current transducer designed for accurate DC current measurement and analog signal conversion in industrial automation and process control applications. Featuring Accuracy Class 0.5, it provides 2 galvanically isolated analog outputs (mA) for seamless integration with PLCs, SCADA systems, DCS, and energy management platforms. The transducer supports direct ±20 mA input or ±300 mV via an external shunt, ensuring flexible installation for various DC current monitoring applications. Its compact DIN rail-mounted design, Micro USB configuration, and IEC 60688 compliance make it ideal for industrial control panels and power monitoring systems.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 X12-152 |
| Product Type | DC Current Transducer |
| System | Single Phase |
| Measurement | DC Current |
| Accuracy Class | 0.5 |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | mA |
| Input Range | ±20 mA Direct or ±300 mV via External Shunt |
| Response Time | 100–220 ms |
| Mounting | DIN Rail (EN 50022) |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Operating Temperature | -5°C to +55°C |
| Standards | IEC 60688, IEC 61010-1, IEC 61010-2-30, IEC 61326-1 |
| Applications | PLC Panels, SCADA Systems, DCS, Battery Monitoring, DC Power Systems, Industrial Automation, Process Control |
