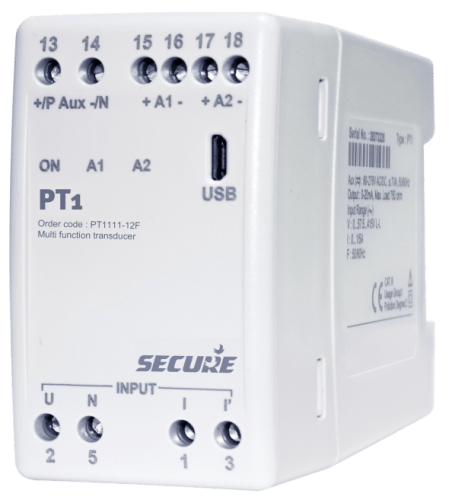

The Secure PT1 XX1-121 is a high-precision single-phase AC voltage transducer designed for accurate voltage measurement and signal conversion in industrial power monitoring applications. Featuring Accuracy Class 0.2, the transducer provides highly reliable True RMS measurements and converts the measured AC voltage into two galvanically isolated analog outputs for monitoring, automation, and control systems. Its compact DIN rail-mounted design, configurable output options, and fast response time make it ideal for switchgear, control panels, substations, OEM equipment, and energy management systems.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-121 |
| Product Type | AC Voltage Transducer |
| System | Single Phase |
| Measurement | AC Voltage (True RMS) |
| Accuracy Class | 0.2 |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA / Voltage) |
| Voltage Input | 57.7–415 V AC |
| Measuring Range | Up to 130% of Nominal Voltage |
| Frequency | 50/60 Hz |
| Mounting | DIN Rail |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Operating Temperature | -5°C to +55°C |
| Standards | IEC 60688, IEC 61010-1, IEC 61326-1 |
| Applications | Switchgear, Control Panels, Industrial Automation, Power Distribution, Energy Monitoring |
